China factory Heavy Duty Forged Stud Link Anchor Chain in Stock in Vessel for Sale

Product Description

U2 U3 steel swivel stud hardware hot dip galvanized anchor link chain
PRODUCT DETAILS
Service: Your inquiry will be replied within 12 hours.
Product name: U2/U3 Grade Studless Fine Price Link Chain 60 mm Anchor Chain
Place of origin: ZheJiang , China.
Brand: LS
Material: CM490;CM690.
Size:16mm-135mm
Surface: BiHangZhou plated (or Hot Dip Galivanized,Polished, Self-color).
Grade: U2,U3,R2,R3
Stock: There are emergency stocks for regular sizes.
Sample:The sample is free, the freight should on your Account before your first order.
Packing method:Nude Packing or Ton Bag.

Using range
1.Marine chain 2.Fishing &boat chain;Mine chain;Cement lifting round chain.

CHINAMFG always lead the new development of technologies, new products
And value-added services. Over the years, link chains have been created, applied,
And enable real growth forcustomers into newmarketplaces.

Stud and studless link anchor chain  Size(6×3.6D) Proof Load  Weight
Diameter Size U1 stud link anchor chain U2 stud link anchor chain U3 stud link anchor chain Weight
D(φ)
  Outside length Outside width Proof load Breaking load Proof load Breaking load Proof load Breaking load 27.5M
  L B

Inch mm mm mm KN KN KN KN KN KN KG
1/2 12.5 75 45 46 66 66 92 92 132 98
9/16 14 84 50.4 58 82 82 116 116 165 119
5/8 16 96 57.6 76 107 107 150 150 216 156
11/16 17.5 105 63 89 127 127 179 179 256 186
3/4 19 114 68.4 105 150 150 211 211 301 230
13/16 20.5 123 73.8 123 175 175 244 244 349 260
7/8 22 132 79.2 140 200 200 280 280 401 300
15/16 24 144 86.4 167 237 237 332 332 476 370
1-1/16 26 156 93.6 194 278 278 389 389 556 431
1-1/8 28 168 100.8 225 321 321 449 449 642 496
1-3/16 30 180 108 257 368 368 514 514 735 564
1-1/4 32 192 115.2 291 417 417 583 583 833 635
1-5/16 34 204 122.4 328 468 468 655 655 937 712
1-7/16 36 216 129.6 366 523 523 732 732 1050 800
1-1/2 38 228 136.8 406 581 581 812 812 1160 887
1-9/16 40 240 144 448 640 640 896 896 1280 1032
1-5/8 42 252 151.2 492 703 703 981 981 1400 1084
1-3/4 44 264 158.4 538 769 769 1080 1080 1540 1197
1-13/16 46 276 165.6 585 837 837 1170 1170 1680 1310
1-7/8 48 288 172.8 635 908 908 1270 1270 1810 1438
2 50 300 180 686 981 981 1370 1370 1960 1546
2-1/16 52 312 187.2 739 1060 1060 1480 1480 2110 1661
2-1/8 54 324 194.4 794 1140 1140 1590 1590 2270 1791
2-3/16 56 336 201.6 851 1220 1220 1710 1710 2430 1926
2-5/16 58 348 208.8 909 1290 1290 1810 1810 2600 2086
2-3/8 60 360 216 969 1380 1380 1940 1940 2770 2249
2-7/16 62 372 223.2 1030 1470 1470 2060 2060 2940 2361
2-1/2 64 384 230.4 1100 1560 1560 2190 2190 3130 2516
2-9/16 66 396 237.6 1160 1660 1660 2310 2310 3300 2676
2-11/16 68 408 244.8 1230 1750 1750 2450 2450 3500 2885
2-3/4 70 420 252 1290 1840 1840 2580 2580 3690

Our company with the strict quality managerment system,the first class equipments and the reliable quality,the products have been exported to the inited sates,Canada,Europe,Middle east,Africa and more than 30 countries and regions,and get high prestige.
We warmly welcomes both the new and old,domestic and foreign customers to exchange the technology and cooperation with us.

1.General Raw material comes from the top 10 Steel Companies in China.

2.Sample is available before bulk production.

3.QC.A testing report is compulsory before each dispatch.

4.We can accept any kind of testing.

5.R&D.customized products are our main development direction.

6.General products order of 1 20ft container was shipped within 25 days.

7. 24 hours online service for global markets.

8.Our exporting sales team included 12 sales consultants with 5 documents assistant to solve customers’ different problems in high efficiency.

/* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Application: Boat
Standard: ASTM, GB, DIN, ANSI, JIS, ISO
Customized: Non-Customized
Surface Treatment: Bitumen
Material: Steel
Type: Stud Chains

heavy duty chain

What are the benefits of using a heavy-duty chain over other chain types?

Heavy-duty chains offer several advantages over other chain types, making them a preferred choice in various industrial applications:

  • High Strength: Heavy-duty chains are specifically designed to handle heavy loads and high forces, making them ideal for applications that require superior strength and durability.
  • Robustness: These chains are constructed from tough materials and undergo rigorous manufacturing processes, ensuring they can withstand harsh operating conditions and resist wear and tear over extended periods.
  • Reliability: The robust design and high-quality materials used in heavy-duty chains result in reliable performance, reducing the risk of chain failure and equipment downtime.
  • Wide Range of Sizes: Heavy-duty chains are available in various sizes and configurations to accommodate different applications and equipment requirements, offering versatility in their usage.
  • Compatibility: They can be used with a wide range of sprockets or pulleys, providing flexibility in designing mechanical systems and power transmission setups.
  • Reduced Stretch: Heavy-duty chains exhibit minimal elongation or stretch during operation, maintaining consistent power transmission and precise positioning in machinery.
  • Resistance to Corrosion: Some heavy-duty chains are made from corrosion-resistant materials, making them suitable for use in challenging environments such as marine, outdoor, or high-moisture settings.
  • Long Service Life: Due to their strength and durability, heavy-duty chains generally have a longer service life compared to standard chains, leading to cost savings over time.

Overall, heavy-duty chains are an excellent choice in demanding industrial applications where reliable performance, strength, and longevity are crucial factors. Their ability to handle heavy loads, resist wear and corrosion, and maintain precision makes them indispensable in various industries, including construction, mining, agriculture, marine, and material handling.

heavy duty chain

What are the benefits of using a heavy-duty chain in waste management and recycling equipment?

Heavy-duty chains offer several benefits when used in waste management and recycling equipment:

  • Durability: Waste management and recycling operations involve handling heavy and abrasive materials, such as metal scraps, construction debris, and industrial waste. Heavy-duty chains are designed to withstand the demanding conditions of these environments and provide long-lasting performance.
  • High Load Capacity: Waste management and recycling equipment often require moving large and heavy loads. Heavy-duty chains have a high load-bearing capacity, making them suitable for handling substantial weights without deformation or failure.
  • Resistance to Corrosion: Waste materials and recycling processes can expose chains to corrosive substances, such as acids and chemicals. Heavy-duty chains are often made from corrosion-resistant materials, like stainless steel, to ensure they remain functional and reliable even in harsh environments.
  • Reduced Downtime: With durable and reliable heavy-duty chains, the risk of unexpected failures and downtime is minimized. This leads to increased operational efficiency and cost-effectiveness in waste management and recycling operations.
  • Enhanced Safety: Safety is paramount in waste management facilities. Heavy-duty chains, when properly installed and maintained, contribute to the safe and smooth operation of equipment, reducing the likelihood of accidents and injuries.
  • Compatibility with Various Equipment: Heavy-duty chains are versatile and can be used in various waste management and recycling equipment, such as conveyor systems, shredders, balers, and sorting machines.

In conclusion, heavy-duty chains play a crucial role in waste management and recycling equipment by providing durability, high load capacity, corrosion resistance, and enhanced safety. These chains ensure the efficient and reliable handling of heavy waste materials, contributing to the overall effectiveness of waste management and recycling processes.

heavy duty chain

What materials are heavy-duty chains typically made of to withstand heavy usage?

Heavy-duty chains are made of high-strength materials that can withstand the demanding conditions of heavy usage. The most common materials used in manufacturing heavy-duty chains include:

  • Alloy Steel: Alloy steel is a popular choice for heavy-duty chains due to its excellent strength, toughness, and wear resistance. It is well-suited for applications in industries such as construction, mining, and forestry.
  • Stainless Steel: Stainless steel heavy-duty chains offer superior corrosion resistance, making them ideal for applications in marine environments, food processing, and other industries where exposure to moisture and chemicals is a concern.
  • Carbon Steel: Carbon steel chains are more affordable than alloy steel or stainless steel, making them a practical choice for heavy-duty applications that don’t require high levels of corrosion resistance.
  • Chromium-Molybdenum Steel: This type of steel provides a balance between strength and toughness, making it suitable for heavy-duty chains used in agricultural equipment and manufacturing machinery.
  • Nickel-Plated Steel: Nickel-plated chains offer additional protection against corrosion, making them suitable for applications where exposure to harsh environments is expected.
  • Galvanized Steel: Galvanized chains are coated with a layer of zinc, which provides corrosion resistance and is commonly used in outdoor applications and marine environments.

The choice of material depends on the specific requirements of the application and the operating environment. Heavy-duty chains made from these materials can endure the stresses of heavy usage and maintain their strength and integrity over prolonged periods, ensuring the reliable performance of various industrial machinery and equipment.

China factory Heavy Duty Forged Stud Link Anchor Chain in Stock in Vessel for Sale  China factory Heavy Duty Forged Stud Link Anchor Chain in Stock in Vessel for Sale
editor by CX 2024-05-13

China Standard Top Quality Durable CZPT G100 Heavy-Duty Custom Marine Lifting Chain for Hoisting

Product Description

Product Description

     Lifting  chain has been 1 of the most popular chain products on the market for many years, mainly due to its strength, durability, and ease of use. All our alloy steel  lifting chain is heat treated to offer industry leading load capacity and durability.



Lifting chain (EN818-2, DIN5687-80)


Size
mm
Deviation
+/-
Pitch
mm
Deviation
Max
Deviation
Min
Inside width
mm
Outside
Width
mm
Weight
Kg/m
Working
Load (kn)
Proof
Load (kn)
Break
Load (kn)
6 0.24 18.00 18.50 17.50 7.80 22.20 0.80 11.20 28.30 45.20
7 0.28 21.00 21.80 20.40 9.10 25.90 1.10 15.00 38.50 61.60
8 0.32 24.00 24.70 23.30 10.40 29.60 1.40 20.00 60.30 80.40
10 0.40 30.00 30.90 29.10 13.00 37.00 2.20 31.50 78.50 126.00
13 0.52 39.00 40.20 37.80 16.90 48.10 3.80 53.00 133.00 212.00
16 0.64 48.00 49.40 49.60 20.80 59.20 5.70 80.00 201.00 322.00
18 0.90 54.00 55.60 52.40 23.40 66.60 7.30 100.00 254.00 407.00
20 1.00 60.00 61.80 58.20 26.00 74.00 9.00 125.00 314.00 503.00
22 1.10 66.00 68.00 64.00 28.60 81.40 10.90 150.00 380.00 608.00
26 1.3 92.00 92.30 91.70 33.80 96.20 15.20 212.00 531.00 849.00

DIN5687-80

Size (mm) Pitch (mm) Inside width (mm) Weight
Kg/m
Break load
Kn
Diameter Tolerance Pitch Tolerance Min Inside
Width
Max Inside
Width
6 ±0.2 18 ±0.5 8.0 21.6 0.8 45.22
8 ±0.3 24 ±0.7 10.8 28.8 1.4 80.38
10 ±0.4 30 ±0.9 13.5 36.0 2.2 125.60
13 ±0.5 39 ±1.2 17.5 46.8 3.8 212.26
16 ±0.6 48 ±1.4 21.5 57.6 5.7 321.54
18 ±0.9 54 ±1.6 24.3 64.8 7.3 406.94
20 ±1 60 ±1.8 27.0 72.0 9.0 502.40
22 ±1.1 66 ±2.0 29.5 79.2 10.9 607.90
26 ±1.3 92 ±2.3 35.0 93.6 13.9 849.06
28 ±1.4 108 ±2.5 37.8 100.8 16.5 984.06
32 ±1.5 116 ±2.8 44.5 114 22.8 1280

Size (mm) Pitch (mm) Inside width (mm) Weight
Kg/m
Break load
Kn
Diameter Tolerance Pitch Tolerance Min Inside
Width
Max Inside
Width
6 ±0.2 18 ±0.5 8.0 21.6 0.8 45.22
8 ±0.3 24 ±0.7 10.8 28.8 1.4 80.38
10 ±0.4 30 ±0.9 13.5 36.0 2.2 125.60
13 ±0.5 39 ±1.2 17.5 46.8 3.8 212.26
16 ±0.6 48 ±1.4 21.5 57.6 5.7 321.54
18 ±0.9 54 ±1.6 24.3 64.8 7.3 406.94
20 ±1 60 ±1.8 27.0 72.0 9.0 502.40
22 ±1.1 66 ±2.0 29.5 79.2 10.9 607.90
26 ±1.3 92 ±2.3 35.0 93.6 13.9 849.06
28 ±1.4 108 ±2.5 37.8 100.8 16.5 984.06
32 ±1.5 116 ±2.8 44.5 114 22.8 1280



Packaging & Shipping

According to buyer’s requirements

Our products are sold all over the world



Company Profile



    HangZhou Huangxu Anchor Chain Co., Ltd is very well recognized name in the field of high strength round link chains. It’s an honor for us in order to stand out as 1 of the oldest & most reliable firm in the industry. We could manufacture our products according to DIN, EN818-2, ASTM, ISO and special requirements by our clients.  The firm came into existence in the year 1984 and since then we are providing Top Quality Products at the most
competitive price to its customers. By employing automatic flash butt welding and the advanced assembly line, we provide a family of chains with their diameters ranging from 6mm to 32mm and the necessary accessories. Now our mainly products: lashing chain, mining chain, lifting chain, fishing chain, hatch cover chain, transportation chain and so on .Our annual output is about is about 10000 Tons. Our products enjoy good market in more than 50 countries and regions including U.S.A., GERMAN, U.K., NORWAY, JAPAN, AUSTRALIA, and KOREA.

OUR VISION
In Our Vision we want to retain market leadership globally and shall be competitive through Customer Orientation & CHINAMFG in Quality, Innovation & Technology.

Certifications



  •

  ZheJiang Province excellent enterprises         HangZhou City famous trademark               High-tech product certification


FAQ

1.Q:Are you a factory or a trading company?

   A:We are a round chain manufacturer with a history of 40 years and are well known for producing high strength round link chain. We have been providing customers with the top quality products at the most competitive prices.

2.Q:Where is your factory?
   A:Our company is located in Huangxu Town, eastern suburb of HangZhou City, ZheJiang Province,  east of 241 provincial highway, west of ZheJiang – HangZhou Grand Canal and National Road 312 , north along the road to Dagang shipping port , the factory employs more than 200 people, covers  an area of more than 60,000 square meters.
 Welcome to visit our factory!

3.Q: How do you control the quality of your products?
   A:First,selection of high-quality raw material .
      Second,fully produced according to standard process and testing requirement.
      Third, our professional QC team will implement the onsite check and finish product check before delivery.

4.Q:What are your company’s strengths?
   A:We have 40 years of chain production and 20 years of export experience.
      The standard of the CHINAMFG chain has reached the world’s leading level.
      The world’s largest supplier of fishing net chain demand, no complaints.

5.Q: How long is your delivery time for a full container?
   A:We need 20-30 days to deliver 1 full container.

 6.Q:How do i pay?
    A:We accept 30% payment in advance & 70% before shipment for the first
       cooperation, either by T/T or L/C.

7.Q:Can I get samples?
   A:We can supply you samples for free if you just need several links of chains.But you need to pay for the express charge.
  /* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Usage: Transmission Chain, Drag Chain, Conveyor Chain
Material: Alloy
Surface Treatment: Baking Paint
Feature: Heat Resistant
Chain Size: 1/2"*3/32"
Color: Multi-Colored
Customization:
Available

|

Customized Request

heavy duty chain

How do heavy-duty chains handle misalignment between sprockets or pulleys?

Heavy-duty chains are designed to handle a certain degree of misalignment between sprockets or pulleys, providing some flexibility and tolerance to ensure smooth operation even in less-than-perfect alignment conditions.

When heavy-duty chains are used in power transmission systems, it is essential to ensure proper alignment between the sprockets or pulleys to optimize their performance and extend their lifespan. However, in practical applications, perfect alignment is not always achievable due to various factors like manufacturing tolerances, installation errors, or machinery vibrations.

Heavy-duty chains are equipped with side plates and rollers that allow them to articulate and adapt to minor misalignments without causing significant wear or stress on the chain components. The rollers play a crucial role in this aspect, as they can rotate freely and maintain contact with the sprocket or pulley teeth even when the alignment is slightly off.

It is important to note that while heavy-duty chains can handle some misalignment, excessive misalignment should be avoided, as it can lead to accelerated wear and potential chain failure. Regular inspection and maintenance are essential to detect and correct any misalignment issues promptly.

Proper lubrication of the chain also contributes to its ability to handle misalignment by reducing friction and wear between the chain components. Additionally, choosing the right type of heavy-duty chain for the specific application can further enhance its tolerance to misalignment.

In summary, heavy-duty chains can handle a certain amount of misalignment between sprockets or pulleys, thanks to their design and construction. However, maintaining proper alignment and performing regular maintenance are crucial to ensure optimal performance and longevity of the chain in power transmission systems.

heavy duty chain

What are the safety considerations when working with heavy-duty chains?

Working with heavy-duty chains involves handling powerful and robust components that are capable of lifting and moving heavy loads. Ensuring safety is paramount to prevent accidents and injuries in industrial settings. Here are some essential safety considerations when working with heavy-duty chains:

1. Proper Inspection: Before each use, inspect the heavy-duty chains for signs of wear, damage, or deformation. Look for cracks, bent links, or elongation, as these can indicate chain failure. Do not use chains that do not meet the required safety standards or show visible defects.

2. Load Limits: Respect the load limits specified for the heavy-duty chains. Exceeding the recommended weight capacity can lead to chain failure and accidents. Ensure that the load being lifted does not exceed the chain’s rated capacity.

3. Rigging Practices: Use proper rigging techniques to secure the load to the chain. Ensure that the load is evenly distributed and centered on the chain to prevent side loading, which can cause stress and premature wear.

4. Correct Application: Use heavy-duty chains only for their intended applications. Different chains are designed for various purposes, and using the wrong type of chain can compromise safety and performance.

5. Lubrication: Keep the heavy-duty chains adequately lubricated to reduce friction and wear. Regularly lubricate the chains as per the manufacturer’s recommendations.

6. Training and Certification: Only trained and certified personnel should operate overhead crane systems or equipment using heavy-duty chains. Proper training ensures that operators understand safe operating procedures and are aware of potential hazards.

7. Avoid Abrasive Environments: Heavy-duty chains can wear faster in abrasive environments. Whenever possible, avoid using chains in areas with abrasive materials or debris that can accelerate chain wear.

8. Storage and Handling: Store heavy-duty chains properly when not in use. Protect them from exposure to corrosive substances or adverse weather conditions that could compromise their strength and integrity.

9. Regular Maintenance: Implement a regular maintenance program for heavy-duty chains, including inspections, lubrication, and any necessary repairs or replacements. Regular maintenance helps detect potential issues early and ensures optimal chain performance.

10. Emergency Procedures: Establish clear emergency procedures in case of chain failure or accidents. All personnel should be familiar with these procedures to respond appropriately in case of an emergency.

By following these safety considerations and best practices, companies can maintain a safe working environment when using heavy-duty chains, reducing the risk of accidents and promoting efficient and secure material handling operations.

heavy duty chain

How do heavy-duty chains handle shock loads and dynamic forces?

Heavy-duty chains are designed to handle shock loads and dynamic forces, which are common in industrial applications. They exhibit several features that allow them to withstand these demanding conditions:

  • High Strength: Heavy-duty chains are typically made from high-quality, high-strength materials such as alloy steel or stainless steel. This enhances their ability to withstand sudden and intense forces without deformation or failure.
  • Robust Construction: The construction of heavy-duty chains involves precision manufacturing, resulting in a robust and durable chain design. The links and pins are engineered to resist bending and twisting forces that can occur during shock loads.
  • Heat Treatment: Many heavy-duty chains undergo heat treatment processes to further enhance their strength and hardness. This treatment increases the chain’s resistance to wear and fatigue, ensuring its longevity under dynamic loading conditions.
  • Fatigue Resistance: Heavy-duty chains are designed with fatigue resistance in mind. Their load-bearing components are engineered to distribute stress evenly, reducing the likelihood of fatigue failure when subjected to repetitive dynamic forces.
  • Advanced Engineering: Manufacturers use advanced engineering techniques and simulations to optimize the chain’s design for specific dynamic loads and shock conditions. This ensures that the chain can handle the expected stresses and forces it will encounter during operation.

When using heavy-duty chains in applications with shock loads and dynamic forces, it’s crucial to follow the manufacturer’s guidelines for load capacity, operating conditions, and maintenance. Regular inspections and proper lubrication are essential to detect any signs of wear or damage that could compromise the chain’s performance under these demanding conditions.

China Standard Top Quality Durable CZPT G100 Heavy-Duty Custom Marine Lifting Chain for Hoisting  China Standard Top Quality Durable CZPT G100 Heavy-Duty Custom Marine Lifting Chain for Hoisting
editor by CX 2024-05-09

China wholesaler CZPT G100 Alloy Steel Heavy-Duty Galvanized Welded Mining Link Chain for Lifting

Product Description

Product Description

     Lifting  chain has been 1 of the most popular chain products on the market for many years, mainly due to its strength, durability, and ease of use. All our alloy steel  lifting chain is heat treated to offer industry leading load capacity and durability.



Lifting chain (EN818-2, DIN5687-80)


Size
mm
Deviation
+/-
Pitch
mm
Deviation
Max
Deviation
Min
Inside width
mm
Outside
Width
mm
Weight
Kg/m
Working
Load (kn)
Proof
Load (kn)
Break
Load (kn)
6 0.24 18.00 18.50 17.50 7.80 22.20 0.80 11.20 28.30 45.20
7 0.28 21.00 21.80 20.40 9.10 25.90 1.10 15.00 38.50 61.60
8 0.32 24.00 24.70 23.30 10.40 29.60 1.40 20.00 60.30 80.40
10 0.40 30.00 30.90 29.10 13.00 37.00 2.20 31.50 78.50 126.00
13 0.52 39.00 40.20 37.80 16.90 48.10 3.80 53.00 133.00 212.00
16 0.64 48.00 49.40 49.60 20.80 59.20 5.70 80.00 201.00 322.00
18 0.90 54.00 55.60 52.40 23.40 66.60 7.30 100.00 254.00 407.00
20 1.00 60.00 61.80 58.20 26.00 74.00 9.00 125.00 314.00 503.00
22 1.10 66.00 68.00 64.00 28.60 81.40 10.90 150.00 380.00 608.00
26 1.3 92.00 92.30 91.70 33.80 96.20 15.20 212.00 531.00 849.00

DIN5687-80

Size (mm) Pitch (mm) Inside width (mm) Weight
Kg/m
Break load
Kn
Diameter Tolerance Pitch Tolerance Min Inside
Width
Max Inside
Width
6 ±0.2 18 ±0.5 8.0 21.6 0.8 45.22
8 ±0.3 24 ±0.7 10.8 28.8 1.4 80.38
10 ±0.4 30 ±0.9 13.5 36.0 2.2 125.60
13 ±0.5 39 ±1.2 17.5 46.8 3.8 212.26
16 ±0.6 48 ±1.4 21.5 57.6 5.7 321.54
18 ±0.9 54 ±1.6 24.3 64.8 7.3 406.94
20 ±1 60 ±1.8 27.0 72.0 9.0 502.40
22 ±1.1 66 ±2.0 29.5 79.2 10.9 607.90
26 ±1.3 92 ±2.3 35.0 93.6 13.9 849.06
28 ±1.4 108 ±2.5 37.8 100.8 16.5 984.06
32 ±1.5 116 ±2.8 44.5 114 22.8 1280

Size (mm) Pitch (mm) Inside width (mm) Weight
Kg/m
Break load
Kn
Diameter Tolerance Pitch Tolerance Min Inside
Width
Max Inside
Width
6 ±0.2 18 ±0.5 8.0 21.6 0.8 45.22
8 ±0.3 24 ±0.7 10.8 28.8 1.4 80.38
10 ±0.4 30 ±0.9 13.5 36.0 2.2 125.60
13 ±0.5 39 ±1.2 17.5 46.8 3.8 212.26
16 ±0.6 48 ±1.4 21.5 57.6 5.7 321.54
18 ±0.9 54 ±1.6 24.3 64.8 7.3 406.94
20 ±1 60 ±1.8 27.0 72.0 9.0 502.40
22 ±1.1 66 ±2.0 29.5 79.2 10.9 607.90
26 ±1.3 92 ±2.3 35.0 93.6 13.9 849.06
28 ±1.4 108 ±2.5 37.8 100.8 16.5 984.06
32 ±1.5 116 ±2.8 44.5 114 22.8 1280



Packaging & Shipping

According to buyer’s requirements

Our products are sold all over the world



Company Profile



    HangZhou Huangxu Anchor Chain Co., Ltd is very well recognized name in the field of high strength round link chains. It’s an honor for us in order to stand out as 1 of the oldest & most reliable firm in the industry. We could manufacture our products according to DIN, EN818-2, ASTM, ISO and special requirements by our clients.  The firm came into existence in the year 1984 and since then we are providing Top Quality Products at the most
competitive price to its customers. By employing automatic flash butt welding and the advanced assembly line, we provide a family of chains with their diameters ranging from 6mm to 32mm and the necessary accessories. Now our mainly products: lashing chain, mining chain, lifting chain, fishing chain, hatch cover chain, transportation chain and so on .Our annual output is about is about 10000 Tons. Our products enjoy good market in more than 50 countries and regions including U.S.A., GERMAN, U.K., NORWAY, JAPAN, AUSTRALIA, and KOREA.

OUR VISION
In Our Vision we want to retain market leadership globally and shall be competitive through Customer Orientation & CHINAMFG in Quality, Innovation & Technology.

Certifications



  •

  ZheJiang Province excellent enterprises         HangZhou City famous trademark               High-tech product certification


FAQ

1.Q:Are you a factory or a trading company?

   A:We are a round chain manufacturer with a history of 40 years and are well known for producing high strength round link chain. We have been providing customers with the top quality products at the most competitive prices.

2.Q:Where is your factory?
   A:Our company is located in Huangxu Town, eastern suburb of HangZhou City, ZheJiang Province,  east of 241 provincial highway, west of ZheJiang – HangZhou Grand Canal and National Road 312 , north along the road to Dagang shipping port , the factory employs more than 200 people, covers  an area of more than 60,000 square meters.
 Welcome to visit our factory!

3.Q: How do you control the quality of your products?
   A:First,selection of high-quality raw material .
      Second,fully produced according to standard process and testing requirement.
      Third, our professional QC team will implement the onsite check and finish product check before delivery.

4.Q:What are your company’s strengths?
   A:We have 40 years of chain production and 20 years of export experience.
      The standard of the CHINAMFG chain has reached the world’s leading level.
      The world’s largest supplier of fishing net chain demand, no complaints.

5.Q: How long is your delivery time for a full container?
   A:We need 20-30 days to deliver 1 full container.

 6.Q:How do i pay?
    A:We accept 30% payment in advance & 70% before shipment for the first
       cooperation, either by T/T or L/C.

7.Q:Can I get samples?
   A:We can supply you samples for free if you just need several links of chains.But you need to pay for the express charge.
  /* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Usage: Transmission Chain, Drag Chain, Conveyor Chain
Material: Alloy
Surface Treatment: Baking Paint
Feature: Heat Resistant
Chain Size: 1/2"*3/32"
Color: Multi-Colored
Customization:
Available

|

Customized Request

heavy duty chain

Can heavy-duty chains be used in mining and construction equipment?

Yes, heavy-duty chains are commonly used in both mining and construction equipment due to their robustness and ability to withstand demanding conditions. In mining operations, heavy-duty chains are employed for various tasks, including:

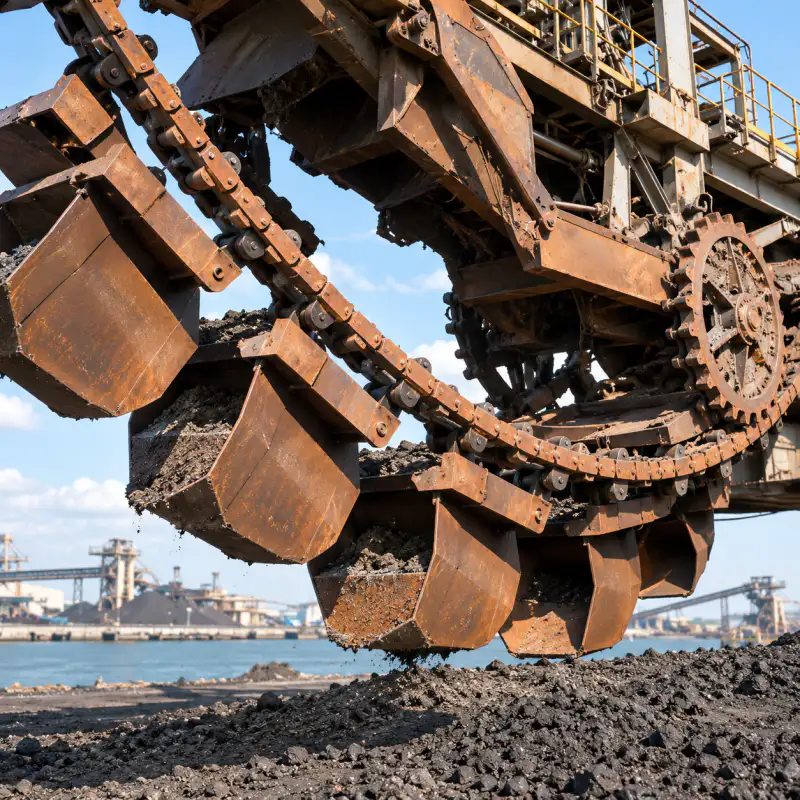

  • Conveying: Heavy-duty chains are used in conveyor systems to transport bulk materials like coal, ore, and minerals.
  • Dragline Excavators: These large machines use heavy-duty chains for drag and hoist operations in surface mining.
  • Loaders and Shovels: Heavy-duty chains are utilized in loaders and shovels for bucket lifting and material handling.
  • Haul Trucks: Heavy-duty chains are part of the drive system in off-road haul trucks used to transport mined materials.

In the construction industry, heavy-duty chains are essential components in various equipment, such as:

  • Cranes: Heavy-duty chains are used in the lifting mechanism of mobile cranes and tower cranes.
  • Excavators: These machines use heavy-duty chains in their digging and bucket operations.
  • Concrete Pumps: Heavy-duty chains are employed in concrete pumps for concrete placement.
  • Pavers: Heavy-duty chains are part of the drive system in asphalt pavers for road construction.

The durability and strength of heavy-duty chains make them well-suited for the rigorous demands of mining and construction environments. They ensure reliable performance and safety in these critical industrial applications.

heavy duty chain

Can heavy-duty chains be used in aerospace and aviation equipment?

Heavy-duty chains are not typically used in aerospace and aviation equipment. In these industries, components must meet stringent requirements for weight, precision, and reliability, and heavy-duty chains may not be suitable for such applications.

Aerospace and aviation equipment require lightweight materials to minimize overall weight and ensure fuel efficiency. Heavy-duty chains, designed to handle extreme loads, are usually made of robust but heavy materials, which would be impractical in aerospace and aviation.

In aerospace and aviation, specialized lightweight materials like titanium, aluminum, and composites are commonly used to construct components such as gears, shafts, and bearings. Chains, if needed, would be engineered using lightweight, high-strength materials specifically tailored to meet the industry’s strict performance and weight requirements.

The primary applications for heavy-duty chains are in industries such as construction, mining, agriculture, material handling, and power transmission, where their durability and load-bearing capabilities are essential.

In summary, heavy-duty chains are not commonly utilized in aerospace and aviation equipment due to their weight and other design limitations. Aerospace and aviation components are meticulously engineered to meet the unique demands of these industries, and lightweight, precision materials are the norm for ensuring safe and efficient operations.

heavy duty chain

Can heavy-duty chains be used in outdoor or harsh environments?

Yes, heavy-duty chains are specifically designed to excel in outdoor or harsh environments. Their robust construction and choice of high-strength materials make them well-suited for demanding applications where exposure to extreme weather, moisture, and other challenging conditions is common. Some of the environments where heavy-duty chains are commonly used include:

  • Construction Sites: Heavy-duty chains are extensively used in construction equipment like excavators, bulldozers, and cranes, where they must withstand the rigors of construction sites.
  • Mining Operations: In mining equipment such as loaders, haul trucks, and crushers, heavy-duty chains play a critical role in handling heavy loads and operating in harsh conditions.
  • Marine Environments: Stainless steel and galvanized heavy-duty chains are utilized in marine equipment due to their corrosion resistance, making them ideal for ship mooring, lifting, and anchoring.
  • Agricultural Settings: Heavy-duty chains are commonly employed in agricultural machinery for various tasks like tilling, harvesting, and irrigation.
  • Forestry Applications: In forestry equipment, such as logging machinery and sawmills, heavy-duty chains are essential to handle the demanding conditions of wood processing.
  • Outdoor Power Equipment: Chainsaws and other outdoor power tools often use heavy-duty chains to endure the stresses of cutting through tough materials.

These chains are designed to resist corrosion, abrasion, and fatigue, ensuring their reliable performance in challenging outdoor environments. Regular maintenance and proper lubrication are still necessary to prolong the lifespan and efficiency of heavy-duty chains when used in such conditions.

China wholesaler CZPT G100 Alloy Steel Heavy-Duty Galvanized Welded Mining Link Chain for Lifting  China wholesaler CZPT G100 Alloy Steel Heavy-Duty Galvanized Welded Mining Link Chain for Lifting
editor by CX 2024-05-08

China Good quality Drive chain conveyor drives standard pitch industrial heavy-duty carbon steel roller chains

Product Description

Drive chain conveyor drives standard pitch industrial heavy-duty carbon steel roller chains

Product introduction

Material Carbon steel, alloy steel
Surface Treatment Polishing,Original Colour,Polishing
Applicable Industries Building Material Shops, Manufacturing Plant, Machinery ………
Standard or Nonstandard Standard
Heat Treatment: High Temperature Hardening
Color Elf,dark yellow,dark blue,black
Features

•Large reduction ratio (usually up to 1:7)
•Chains can be used with long shaft center distances (normally up to 4m). By changing the number of links it is possible to freely adjust the shaft center distance.
•The chain can be used on both sides and drive multiple shafts at the same time.
•Easy installation and replacement (easy to cut and connect chains).
•If the distance between shafts is short, it can be used vertically.
•The sprocket diameter of a chain drive could be smaller than a belt pulley while transmitting the same torque.
•Transmitting power by meshing many teeth results in less wear of sprocket teeth than gears.
•Chain drives have greater shock absorption than gear drives.



HIGH STHangZhouRD HEAT TREATMENT

Through high standards,strictly control the heat,improve the hardness/strength and provide service life.

STHangZhouRD THICKNESS CHAIN PIECE

The thickness is customized from raw material chain plate in strict accordance with the standard

HIGH QUALITY MATERIAL

Beautiful and corrosion-resistant, the product surface is treated with rust prevention, beautiful and simple!

STHangZhouRD CHINAMFG PIN

Cutting in strict accordance with the standard, second screening,
and never cut corners

Green Power Industry Co Llimited is an international export enterprise combined with factory specializing in the manufacturing of brake system , clutch system,spark plug and chain . Our company is a professional manufacturer and supplier of brake,chain and clutch in China. We both have our own brake CHINAMFG factory, brake pad factory, brake shoe factory ,clutch disc factory,chain factory, spark plug factory .We focus on developing high-quality products for OEM market ,Our company have developed and produced high quality brake in formula non -metallic and asbestos free for automobile and brake shoe assembly for heavy duty truck . The production are noted good characteristics such as high strength , high heat-resisting , wear-resisting.low dust virtue ,no noise and better stability . The series products had been exporting to North -America ,Europe ,Middle -East ,Australia and etc, widely sale to domestic OEM factories and aftermarket.

Our company is composed of professional team , process advanced production inspection and testing equipment Each product have passed the first inspection, process inspection, error prevention, and laboratory tests to ensure that each piece of qualified products sent to customers

We are determined to set up the aim of “excellent quality and satisfying service·, with·the first class quality , reasonable price and perfect service . we set strick demand and operate conforming to the standard to guarantee all the products can be meet our customer’s needs
1.Q: What is the certificate of your factory?
   A: We have passed IAF ISO and TS16949  certification.

2.Q: Can it be produced according to the sample?
   A: Yes, we can produce through your samples or technical drawings. We can build molds and fixtures.

3.Q: Do you test all products before shipping?
   A: Yes, we conduct 100% quality testing before delivery, and we are 100% responsible for product quality.

4.Q: What is your delivery time?
   A:If we have stock, we can send it immediately within a week. If not, it usually ranges from 7 days to 35 days, depending on the quantity.

5.Q: What is your sample policy?
   A: We want to provide you with samples for approval. There will be no charge for 1 or 2 samples, but the customer needs to bear the courier fee first.
It will be drawback to customer when order placed

6.Q: How do you make our business establish a long-term good cooperative relationship?
   A:1. We maintain excellent quality and competitive prices to ensure that our customers benefit;
      2. We respect every customer as our friend, we do business sincerely and make friends widely,No matter where they come from.
  /* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Usage: Transmission Chain, Conveyor Chain
Material: Carbon steel, alloy steel
Surface Treatment: Polishing
Feature: Heat Resistant
Chain Size: 1/2"*3/32"
Structure: Roller Chain
Samples:
US$ 0/Piece
1 Piece(Min.Order)

|
Request Sample

Customization:
Available

|

Customized Request

heavy duty chain

Can heavy-duty chains be used in agricultural machinery and equipment?

Yes, heavy-duty chains are commonly used in various agricultural machinery and equipment. These chains play a vital role in ensuring the efficient and reliable operation of agricultural machinery, which often requires withstanding heavy loads, tough environmental conditions, and continuous use.

Some of the key agricultural machinery and equipment that utilize heavy-duty chains include:

  • Tractors: Heavy-duty chains are employed in tractors for tasks like powering the wheels, operating the transmission, and driving the power take-off (PTO) system.
  • Harvesters: Agricultural harvesters utilize heavy-duty chains in their cutting and threshing mechanisms to handle the stresses of harvesting crops.
  • Balers: Balers use heavy-duty chains to compress and tie bales of hay or straw for storage and transportation.
  • Planters: Planting equipment relies on heavy-duty chains for the precise and synchronized delivery of seeds or seedlings into the soil.
  • Sprayers: Agricultural sprayers use heavy-duty chains to power their pump systems, ensuring uniform and efficient application of fertilizers or pesticides.

The agricultural environment can be challenging, with exposure to dirt, debris, and varying weather conditions. Heavy-duty chains, known for their durability and resilience, are well-suited to handle these demanding conditions, ensuring consistent performance and reducing the risk of downtime.

Proper maintenance and periodic lubrication are essential to keep heavy-duty chains in optimal condition and extend their service life. Regular inspections help identify any signs of wear or damage, allowing for timely replacements and preventing potential equipment failures.

In summary, heavy-duty chains are an integral part of agricultural machinery and equipment, contributing to the productivity and reliability of farming operations.

heavy duty chain

How do heavy-duty chains handle wear and tear in continuous operation?

Heavy-duty chains are designed to withstand the rigors of continuous operation and are built to handle significant wear and tear. Several key factors contribute to their ability to endure continuous use:

  • High-Quality Materials: Heavy-duty chains are typically constructed from high-quality alloy or carbon steels. These materials offer excellent strength, toughness, and resistance to wear, making them suitable for continuous operation.
  • Heat Treatment: Many heavy-duty chains undergo heat treatment processes, such as quenching and tempering, to enhance their hardness and durability. Heat treatment helps the chains maintain their structural integrity under prolonged stress.
  • Robust Design: Heavy-duty chains are designed with robust and precise engineering to distribute the loads evenly and minimize stress concentrations. This design feature prevents premature failure due to excessive wear in specific areas.
  • Lubrication: Proper lubrication is crucial in reducing friction and minimizing wear between the chain’s components. Lubricants help to dissipate heat generated during continuous operation and prevent metal-to-metal contact, extending the chain’s lifespan.

In continuous operation, heavy-duty chains are often found in various industrial applications, such as mining, construction, and material handling equipment. These chains are exposed to harsh conditions, heavy loads, and constant movement. The combination of high-quality materials, heat treatment, robust design, and proper lubrication ensures that heavy-duty chains can handle the demanding requirements of continuous operation.

Despite their durability, heavy-duty chains still experience wear over time. Regular maintenance, including inspection, lubrication, and replacement of worn components, is essential to prolong the life of the chain and ensure safe and reliable operation. By following proper maintenance procedures, the risk of unexpected failures and downtime can be significantly reduced, providing more efficient and uninterrupted operation in various industries.

heavy duty chain

Can heavy-duty chains be used in outdoor or harsh environments?

Yes, heavy-duty chains are specifically designed to excel in outdoor or harsh environments. Their robust construction and choice of high-strength materials make them well-suited for demanding applications where exposure to extreme weather, moisture, and other challenging conditions is common. Some of the environments where heavy-duty chains are commonly used include:

  • Construction Sites: Heavy-duty chains are extensively used in construction equipment like excavators, bulldozers, and cranes, where they must withstand the rigors of construction sites.
  • Mining Operations: In mining equipment such as loaders, haul trucks, and crushers, heavy-duty chains play a critical role in handling heavy loads and operating in harsh conditions.
  • Marine Environments: Stainless steel and galvanized heavy-duty chains are utilized in marine equipment due to their corrosion resistance, making them ideal for ship mooring, lifting, and anchoring.
  • Agricultural Settings: Heavy-duty chains are commonly employed in agricultural machinery for various tasks like tilling, harvesting, and irrigation.
  • Forestry Applications: In forestry equipment, such as logging machinery and sawmills, heavy-duty chains are essential to handle the demanding conditions of wood processing.
  • Outdoor Power Equipment: Chainsaws and other outdoor power tools often use heavy-duty chains to endure the stresses of cutting through tough materials.

These chains are designed to resist corrosion, abrasion, and fatigue, ensuring their reliable performance in challenging outdoor environments. Regular maintenance and proper lubrication are still necessary to prolong the lifespan and efficiency of heavy-duty chains when used in such conditions.

China Good quality Drive chain conveyor drives standard pitch industrial heavy-duty carbon steel roller chains  China Good quality Drive chain conveyor drives standard pitch industrial heavy-duty carbon steel roller chains
editor by CX 2024-05-08

China Hot selling Heavy Duty Rivetless Forged Chain X458 Industry Standard Chain Carbon Steel Chain and Forged Link Chain Steel Forging Chain for Painting Line

Product Description

About Factory

With more than 18 years’ histiory, we are a professinal manufacturer for drop forged products such as forged chain (X348 X458 X658 X678 X698 F100 F160), scraper chain (10160, 14218, 14226, 142N), conveyor trolley (X348, X458, X678, XT160), and drive chain (X348, X458, X678), and so forth standard moulds of chain.

Besides, we can also produce as per your drawing or sample, special link chain, pusher, pin and plate, according to customers’ unique requirements.

Product Description

1) Material: Alloy steel, 40Cr, 42CrMo and so on.
2) Types: X348 X458 X658 X678 X698 F100 F160, and so on. (Or as per your drawing)
3) Process: Moulding→Forging→Polishing & Blasting→Fine machining→Heat treatment→Blasting→Inspecting & testing→Packing

Technical Data


Products & Testing Equipments


Products Application


Packing & Delivery


Why Choose Us?

1. We are engaged in chain industry over 15 years with rich market experience. We keep improving production techniques. All the products have longer working life and have passed the market test.

2. We can design the correct chains with high quality material, good abrasion resistance, good corrosion, high strengthen and etc as per your request or the chain application.

3. We are the chain manufacturer; you can directly purchase the product from us with low price and high quality.

4. We have a professional team for international trade, they have abundant experiences and are always ready to solve problems for customers. So you have nothing to worry about.

5. We have the long-term cooperative forwarder who can give us the lowest freight. And it can help you to save the freight. What’s more, for the FCL, we will design the packages as per the container sizes with the largest capacity to save the shipping cost for both of us.

  /* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Material: Alloy
Structure: Combined Chain
Surface Treatment: Polishing
Chain Size: 1/2"*11/128"
Feature: Fire Resistant, Oil Resistant, Heat Resistant
Mould Number: X348 X458 X678
Samples:
US$ 0/Piece
1 Piece(Min.Order)

|
Request Sample

Customization:
Available

|

Customized Request

heavy duty chain

Can heavy-duty chains be used in forestry or logging equipment?

Yes, heavy-duty chains are commonly used in forestry and logging equipment due to their robustness and ability to handle the challenging conditions present in these industries.

In forestry and logging operations, heavy-duty chains are often employed in various applications:

  • Log Skidders: Heavy-duty chains are utilized in log skidders, which are specialized vehicles used to drag logs from the forest to a collection site. The chains’ high strength and durability allow them to withstand the stress of pulling heavy logs over rough terrain.
  • Harvesters: Harvesters are machines that cut and process trees into logs. Heavy-duty chains are used in the harvesting head to hold and manipulate the logs during the cutting process.
  • Forwarders: Forwarders are vehicles used to transport logs from the harvesting site to a central location for further processing. Heavy-duty chains are employed to secure the logs on the forwarder’s bunk or grapple, ensuring safe transportation.
  • Chainsaws: While not as heavy-duty as the chains used in other applications, chainsaws also use chains for cutting through wood efficiently.

Forestry and logging operations expose equipment to rugged environments with potential hazards such as impact from falling trees, debris, and extreme weather conditions. Heavy-duty chains’ ability to handle shock loads and resist wear and corrosion makes them well-suited for use in these demanding applications.

Overall, heavy-duty chains play a crucial role in improving the efficiency and safety of forestry and logging equipment, making them an integral component in the industry’s operations.

heavy duty chain

What are the benefits of using a heavy-duty chain in waste management and recycling equipment?

Heavy-duty chains offer several benefits when used in waste management and recycling equipment:

  • Durability: Waste management and recycling operations involve handling heavy and abrasive materials, such as metal scraps, construction debris, and industrial waste. Heavy-duty chains are designed to withstand the demanding conditions of these environments and provide long-lasting performance.
  • High Load Capacity: Waste management and recycling equipment often require moving large and heavy loads. Heavy-duty chains have a high load-bearing capacity, making them suitable for handling substantial weights without deformation or failure.
  • Resistance to Corrosion: Waste materials and recycling processes can expose chains to corrosive substances, such as acids and chemicals. Heavy-duty chains are often made from corrosion-resistant materials, like stainless steel, to ensure they remain functional and reliable even in harsh environments.
  • Reduced Downtime: With durable and reliable heavy-duty chains, the risk of unexpected failures and downtime is minimized. This leads to increased operational efficiency and cost-effectiveness in waste management and recycling operations.
  • Enhanced Safety: Safety is paramount in waste management facilities. Heavy-duty chains, when properly installed and maintained, contribute to the safe and smooth operation of equipment, reducing the likelihood of accidents and injuries.
  • Compatibility with Various Equipment: Heavy-duty chains are versatile and can be used in various waste management and recycling equipment, such as conveyor systems, shredders, balers, and sorting machines.

In conclusion, heavy-duty chains play a crucial role in waste management and recycling equipment by providing durability, high load capacity, corrosion resistance, and enhanced safety. These chains ensure the efficient and reliable handling of heavy waste materials, contributing to the overall effectiveness of waste management and recycling processes.

heavy duty chain

Can heavy-duty chains be used in outdoor or harsh environments?

Yes, heavy-duty chains are specifically designed to excel in outdoor or harsh environments. Their robust construction and choice of high-strength materials make them well-suited for demanding applications where exposure to extreme weather, moisture, and other challenging conditions is common. Some of the environments where heavy-duty chains are commonly used include:

  • Construction Sites: Heavy-duty chains are extensively used in construction equipment like excavators, bulldozers, and cranes, where they must withstand the rigors of construction sites.
  • Mining Operations: In mining equipment such as loaders, haul trucks, and crushers, heavy-duty chains play a critical role in handling heavy loads and operating in harsh conditions.
  • Marine Environments: Stainless steel and galvanized heavy-duty chains are utilized in marine equipment due to their corrosion resistance, making them ideal for ship mooring, lifting, and anchoring.
  • Agricultural Settings: Heavy-duty chains are commonly employed in agricultural machinery for various tasks like tilling, harvesting, and irrigation.
  • Forestry Applications: In forestry equipment, such as logging machinery and sawmills, heavy-duty chains are essential to handle the demanding conditions of wood processing.
  • Outdoor Power Equipment: Chainsaws and other outdoor power tools often use heavy-duty chains to endure the stresses of cutting through tough materials.

These chains are designed to resist corrosion, abrasion, and fatigue, ensuring their reliable performance in challenging outdoor environments. Regular maintenance and proper lubrication are still necessary to prolong the lifespan and efficiency of heavy-duty chains when used in such conditions.

China Hot selling Heavy Duty Rivetless Forged Chain X458 Industry Standard Chain Carbon Steel Chain and Forged Link Chain Steel Forging Chain for Painting Line  China Hot selling Heavy Duty Rivetless Forged Chain X458 Industry Standard Chain Carbon Steel Chain and Forged Link Chain Steel Forging Chain for Painting Line
editor by CX 2024-05-07

China wholesaler Heavy Duty Industrial Conveyor/Steel/Lifting/Link/Welded/Mining Metal/Coal Mining/Mining/Mine Stainless Steel Link Chain

Product Description

Manufactures wholesale stainless steel link chain

Material 300 series stainless steel
Standard DIN766
Diameter 2mm to 20mm
Breaking load 1.25KN – 160KN
Welding type argon-arc welding
Application marine link chain, transmission, etc.



1) High quality of link chain with competitive price

2) Material: stainless steel 316 or stainless steel 304

3) Standard:  DIN763(DIN5685C), DIN766(DIN5685A), Australian types, ASTM standard(G30, G43, G70, G80) , Norwegian type, Korean type, US type, double loop chains, DIN5686 knotted chain, Japanese type and so on

4) Customer design: our experienced engineer team can developed the products and   manufacture in accordance with samples, drawings or only idea

5) Delivery: by sea, by air or by express service

6) Price term: FOB or CIF

7)Diameter: From 1.2mm to 60mm

8)Packaging: Gunny bag, plastic reel, wooden reel, carton, steel drums or as per your request
1) pvc or wooden reel, pallets, wooden box or customized
2) wooden or plastic spools and craft paper (inner)/stong wooden pallet or according to request(outer) for Welded long link chain short link chain stainless steel chain

9)Lead time:

Quantity(Meters) 1 – 10000 >10000
Est. Time(days) 3 To be negotiated





/* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Usage: Transmission Chain, Drag Chain, Conveyor Chain, Dedicated Special Chain
Material: Stainless steel
Surface Treatment: Polishing
Feature: Heat Resistant
Chain Size: 1/2"*3/32"
Structure: Welded Chain
Samples:
US$ 0/Meter
1 Meter(Min.Order)

|
Request Sample

Customization:
Available

|

Customized Request

heavy duty chain

Can heavy-duty chains be used for power transmission in heavy machinery?

Yes, heavy-duty chains are commonly used for power transmission in heavy machinery across various industries. These chains are designed to handle high loads, provide reliable power transmission, and withstand demanding operating conditions.

Heavy machinery, such as construction equipment, mining machinery, and industrial machinery, often require power transmission systems capable of transmitting high torque and operating under harsh environments. Heavy-duty chains are an ideal choice for these applications due to their robust construction and ability to handle heavy loads.

The power transmission process involves the transfer of rotational force or torque from one shaft to another, and heavy-duty chains excel in this role. They typically consist of sturdy components like hardened pins, bushings, and rollers, which contribute to their durability and strength.

Heavy-duty chains are used in various power transmission mechanisms, including gear reduction drives, conveyor systems, and other applications where reliable and efficient power transfer is essential. Additionally, these chains can be found in overhead cranes, hoists, and various lifting equipment used in heavy industrial settings.

When selecting heavy-duty chains for power transmission, factors such as chain size, pitch, tensile strength, and material compatibility should be carefully considered to ensure optimal performance and longevity in the specific heavy machinery application.

In conclusion, heavy-duty chains are well-suited for power transmission in heavy machinery, providing a dependable and robust solution for transmitting high torque and enduring the demanding conditions of heavy industrial operations.

heavy duty chain

Can heavy-duty chains be used in railway maintenance and repair equipment?

Yes, heavy-duty chains can be used in railway maintenance and repair equipment. Railway maintenance and repair require robust and reliable equipment to handle the heavy loads and demanding conditions involved in servicing railway tracks, switches, and other infrastructure.

Heavy-duty chains are well-suited for such applications due to their high strength, durability, and resistance to wear and tear. They can efficiently handle the forces generated during railway maintenance tasks, such as lifting heavy sections of track, tensioning cables, or operating machinery used for track alignment.

In railway equipment, heavy-duty chains are often employed in conjunction with sprockets and other components to create a dependable and efficient power transmission system. The chains’ ability to transmit power smoothly and consistently makes them ideal for operating various railway maintenance and repair machines.

Furthermore, heavy-duty chains can withstand the challenges of working outdoors in different weather conditions and environments. They are designed to resist corrosion and are often equipped with special coatings or plating to enhance their durability.

When using heavy-duty chains in railway maintenance equipment, proper lubrication and maintenance are essential to ensure optimal performance and longevity. Regular inspections and replacement of worn or damaged components will help prevent unexpected failures and ensure safe and efficient operation.

In conclusion, heavy-duty chains are a reliable choice for powering and operating railway maintenance and repair equipment, contributing to the efficiency and effectiveness of railway maintenance tasks.

heavy duty chain

What is a heavy-duty chain and what are its applications in various industries?

A heavy-duty chain is a type of chain designed to withstand high loads, severe conditions, and challenging environments. It is constructed using strong and durable materials, making it suitable for applications that require robust and reliable performance. Here are the details of heavy-duty chain and its applications in various industries:

Definition: A heavy-duty chain is characterized by its larger and stronger components compared to standard chains. It is commonly made from materials such as alloy steel, stainless steel, or carbon steel, and is designed to handle heavy loads, high impact forces, and resistance to wear and fatigue.

Applications: 1. Construction and Infrastructure: Heavy-duty chains are extensively used in construction equipment, including excavators, bulldozers, and cranes. They play a vital role in lifting, digging, and moving heavy materials on construction sites.

2. Mining and Extraction: In the mining industry, heavy-duty chains are employed in large mining equipment like draglines, loaders, and shovels. They are crucial for the extraction and transportation of minerals and ores.

3. Material Handling: Heavy-duty chains are found in various material handling applications, such as overhead cranes, hoists, and conveyor systems. They ensure the smooth and safe movement of heavy goods in industrial facilities and warehouses.

4. Agriculture: In agricultural machinery, heavy-duty chains are used in equipment like combines, tractors, and balers. They handle the stresses of harvesting, plowing, and baling operations in the field.

5. Automotive Manufacturing: Heavy-duty chains are utilized in automotive assembly lines for vehicle assembly and production processes.

6. Forestry: Chainsaw machines and logging equipment rely on heavy-duty chains for felling, bucking, and skidding trees in forestry operations.

7. Marine: Heavy-duty chains are applied in marine environments for anchor lines, mooring systems, and towing operations.

8. Aerospace: Heavy-duty chains are used in aircraft for various applications, including flight control mechanisms and landing gear.

9. Energy and Power Generation: Heavy-duty chains are used in power plants for conveying coal and biomass, as well as in wind turbines for pitch and yaw control.

10. Oil and Gas: Heavy-duty chains are employed in oil rigs and drilling equipment for the extraction of petroleum and natural gas.

Overall, heavy-duty chains are essential components in industries that require reliable, robust, and high-load bearing systems. They contribute to the smooth and efficient operation of various machinery, ensuring safety and productivity in diverse industrial applications.

China wholesaler Heavy Duty Industrial Conveyor/Steel/Lifting/Link/Welded/Mining Metal/Coal Mining/Mining/Mine Stainless Steel Link Chain  China wholesaler Heavy Duty Industrial Conveyor/Steel/Lifting/Link/Welded/Mining Metal/Coal Mining/Mining/Mine Stainless Steel Link Chain
editor by CX 2024-05-06

China Hot selling X348 X458 X678 Heavy-Duty Chain for Powder Coating Overhead Conveyor

Product Description

Detailed Photos





Product Description

Spare parts item Features Photo
Up-Down track for rising or falling areas. standard diameter is 1.2 meters,180º angle. it can be cut based on any necessary angles of any install conditions.the angle should not be more than 45º angle. the distance between 2 adjiacent hangers should be considered.
Check track There is a hatch which can open the track, through the hatch, worker can dismantle or install, check or maintain the conveying chains. Driving device for each conveying route is usually located between driver and take-up device for easy checking and maintenace.
Take-up device

(Tensioner)

Keep the chains in the state of original tension and compensate for the tensile deformation caused by tensile force or telescopic deformaton caused by varied temperature while working.
Make sure certain tensile force between driver and take-up device.   Install it behind driver about distance 3~6 meters. Better have no up-down track behind take-up device.
Straight track for where conveyor chain go straight. it can be cut according to the specific install condition. standard length is 3 meters.
Caterpiller driver device Two types-Standard type and heavy duty type.
The driving device adjust the momentum that the motor ouput, after speed reduction unit increase its power which is to be passed to the driver caterpiller, the pusher dogs on which transport the chain so that chain can move forward.
Hanger
Several types hangers:

Cross type hanger;

Y type hanger;

I type hanger;

Sprocket wheel hanger;

U-type hanger;

Bearing hanger;

Customized.

Automatic oil sprayer Specially designed for various automatic conveying chain;

More convenient to check oil-feeding diyusyion nsdrf CHINAMFG oil volume in the transparent oil pipes.







FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.

Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 30 workdays.
2.Production Lead-times: 60 workdays after getting your deposit.

Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We’ll show you the photos of the products and packages before you pay the balance.

Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.

Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we’ll check


/* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Material: Alloy
Structure: Combined Chain
Surface Treatment: Polishing
Chain Size: 1/2"*3/32"
Feature: Fire Resistant, Oil Resistant, Heat Resistant
Transport Package: Plywood Case.
Customization:
Available

|

Customized Request

heavy duty chain

How do heavy-duty chains handle misalignment between sprockets or pulleys?

Heavy-duty chains are designed to handle a certain degree of misalignment between sprockets or pulleys, providing some flexibility and tolerance to ensure smooth operation even in less-than-perfect alignment conditions.

When heavy-duty chains are used in power transmission systems, it is essential to ensure proper alignment between the sprockets or pulleys to optimize their performance and extend their lifespan. However, in practical applications, perfect alignment is not always achievable due to various factors like manufacturing tolerances, installation errors, or machinery vibrations.

Heavy-duty chains are equipped with side plates and rollers that allow them to articulate and adapt to minor misalignments without causing significant wear or stress on the chain components. The rollers play a crucial role in this aspect, as they can rotate freely and maintain contact with the sprocket or pulley teeth even when the alignment is slightly off.

It is important to note that while heavy-duty chains can handle some misalignment, excessive misalignment should be avoided, as it can lead to accelerated wear and potential chain failure. Regular inspection and maintenance are essential to detect and correct any misalignment issues promptly.

Proper lubrication of the chain also contributes to its ability to handle misalignment by reducing friction and wear between the chain components. Additionally, choosing the right type of heavy-duty chain for the specific application can further enhance its tolerance to misalignment.

In summary, heavy-duty chains can handle a certain amount of misalignment between sprockets or pulleys, thanks to their design and construction. However, maintaining proper alignment and performing regular maintenance are crucial to ensure optimal performance and longevity of the chain in power transmission systems.

heavy duty chain

How do heavy-duty chains handle variable speed and torque requirements?

Heavy-duty chains are designed to handle variable speed and torque requirements in various industrial applications. Their robust construction and high-quality materials allow them to withstand the stresses associated with changing operating conditions. Here’s how they handle variable speed and torque:

1. Strength and Durability: Heavy-duty chains are engineered to handle high torque and heavy loads without deformation or failure. Their sturdy construction ensures they can withstand the increased forces that come with variable speed and torque.

2. Lubrication: Proper lubrication is crucial for heavy-duty chains, especially in applications with variable speed and torque. Lubrication reduces friction and wear, preventing premature failure and ensuring smooth operation even under changing conditions.

3. Precision Engineering: Heavy-duty chains are manufactured with precision to ensure uniformity and consistent performance. This precision allows them to maintain their integrity and function reliably in applications with varying speed and torque requirements.

4. Design Flexibility: Some heavy-duty chains come with specific design features that improve their adaptability to variable speed and torque. For instance, certain chain types may have specially designed link plates or components to reduce wear and noise at high speeds.

5. Temperature Resistance: Heavy-duty chains are often capable of handling a wide range of temperatures, which is beneficial in applications with variable environmental conditions.

6. Compatibility with Sprockets: Heavy-duty chains must be paired with compatible sprockets to ensure smooth engagement and prevent excessive wear. Matching the chain and sprocket correctly is crucial for optimal performance under varying speed and torque.

7. Regular Inspection and Maintenance: To ensure heavy-duty chains continue to handle variable speed and torque effectively, regular inspection and maintenance are essential. This includes checking for wear, proper lubrication, and addressing any issues promptly.

Overall, heavy-duty chains are engineered to be robust and reliable, making them well-suited for applications with changing speed and torque requirements. When appropriately selected, installed, and maintained, they contribute to the smooth and efficient operation of various industrial systems.

heavy duty chain

Can heavy-duty chains be used in high-temperature applications?

Yes, heavy-duty chains can be used in high-temperature applications, but their suitability depends on the specific temperature range and the material they are made of. Here are some considerations:

  • Material Selection: Choose a heavy-duty chain made from heat-resistant materials that can withstand the high temperatures. Common materials used for high-temperature applications include alloy steels and stainless steels.
  • Operating Temperature: Check the manufacturer’s specifications to ensure that the chain is rated for the intended operating temperature. Some chains may have temperature limits beyond which their performance may be compromised.
  • Lubrication: Proper lubrication is essential for heavy-duty chains operating in high-temperature environments. High-temperature lubricants are available that can withstand the heat and provide effective lubrication to reduce wear and friction.
  • Thermal Expansion: Consider the potential for thermal expansion of the chain and ensure that there is enough clearance to accommodate any elongation that may occur due to heat.
  • Protection from Corrosion: High temperatures can accelerate the corrosion process, especially in humid or corrosive environments. Using a corrosion-resistant coating or selecting a stainless steel chain can help protect the chain from premature degradation.
  • Regular Inspection: Implement a maintenance schedule to regularly inspect the chain for signs of wear, elongation, or any adverse effects of the high temperature. Timely maintenance can extend the chain’s service life.

It’s important to note that while heavy-duty chains can operate in high-temperature conditions, there are practical limits to their performance. Extremely high temperatures, such as those found in certain industrial processes, may require specialized chains or alternative solutions.

Always consult with chain manufacturers or industry experts to ensure you select the most suitable heavy-duty chain for your specific high-temperature application. Proper selection and maintenance will maximize the chain’s performance and service life under these demanding conditions.

China Hot selling X348 X458 X678 Heavy-Duty Chain for Powder Coating Overhead Conveyor  China Hot selling X348 X458 X678 Heavy-Duty Chain for Powder Coating Overhead Conveyor
editor by CX 2024-05-03

China manufacturer Heavy Duty Link Chain 6mm 8mm 10mm Black Lifting Chain

Product Description

Hot China Supplier Selling Metal Link Chain

1. Material: alloy steel
2. Surface: Black
3. Processing: Welded
4. Size: 2mm-13mm

                                           PRODUCT DETAILS
Service Your inquiry will be replied within 12 hours.
Product name Hot China Supplier Selling Metal Link Chain
Place of origin ZheJiang ,China.
Brand LS
Material Alloy Steel 20Mn2,25MNV
Size 2MM-26MM
Surface Balck(Electro Galivanized,Hot Dip Galivanized,Polished,Self-color).
Standard Ordinary Mild Steel Link Chain
Grade None
Stock There are emergency stocks for regular sizes.
Sample The sample is free,the freight should on your account before
your first order.
Packing method 5/50 kg one Gunny bag,several bags on one pallet(500kg one iron drum,2
drums on a iron pallet;plastic drum+pallet;plastic/wooden roll+pallet.
Payment term 30% advanced by T/T,the balance should be paid after see the copy of the
B/L;L/C at sight;Western Union.
Delivery time Usually within 15-30days according to your required size&quantity.
Using range 1.Decoration;Protection;Lifting;Traction etc.
2.Fishing &boat chain;Mine chain;Cement lifting round chain.

CHINAMFG always lead the new development of technologies, new products
And value-added services. Over the years, link chains have been created, applied,
And enable real growth forcustomers into newmarketplaces.

Link chains are widely used in various industries.
1. Decoration; Protection; Lifting; Traction etc.
2. Fishing &boat chain; Mine chain; Cement lifting round chain.

We could pack the link chains into all kinds of packing as you like and requirements.
5/50 kg 1 Gunny bag, several bags on 1 pallet(500kg 1 iron drum, 2
Drums on a iron pallet; Plastic drum+pallet; Plastic/wooden roll+pallet. /* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Usage: Transmission Chain
Material: Iron
Surface Treatment: Electroplating
Feature: Hot China Supplier Selling Metal Link Chain
Chain Size: 2mm-26mm
Structure: Welded Chain
Samples:
US$ 1.5/Meter
1 Meter(Min.Order)

|
Request Sample

heavy duty chain

Can heavy-duty chains be used in agricultural machinery and equipment?

Yes, heavy-duty chains are commonly used in various agricultural machinery and equipment. These chains play a vital role in ensuring the efficient and reliable operation of agricultural machinery, which often requires withstanding heavy loads, tough environmental conditions, and continuous use.

Some of the key agricultural machinery and equipment that utilize heavy-duty chains include:

  • Tractors: Heavy-duty chains are employed in tractors for tasks like powering the wheels, operating the transmission, and driving the power take-off (PTO) system.
  • Harvesters: Agricultural harvesters utilize heavy-duty chains in their cutting and threshing mechanisms to handle the stresses of harvesting crops.
  • Balers: Balers use heavy-duty chains to compress and tie bales of hay or straw for storage and transportation.
  • Planters: Planting equipment relies on heavy-duty chains for the precise and synchronized delivery of seeds or seedlings into the soil.
  • Sprayers: Agricultural sprayers use heavy-duty chains to power their pump systems, ensuring uniform and efficient application of fertilizers or pesticides.

The agricultural environment can be challenging, with exposure to dirt, debris, and varying weather conditions. Heavy-duty chains, known for their durability and resilience, are well-suited to handle these demanding conditions, ensuring consistent performance and reducing the risk of downtime.

Proper maintenance and periodic lubrication are essential to keep heavy-duty chains in optimal condition and extend their service life. Regular inspections help identify any signs of wear or damage, allowing for timely replacements and preventing potential equipment failures.

In summary, heavy-duty chains are an integral part of agricultural machinery and equipment, contributing to the productivity and reliability of farming operations.

heavy duty chain

Can heavy-duty chains be used in heavy-duty lifting and rigging applications?

Yes, heavy-duty chains are widely used in heavy-duty lifting and rigging applications due to their exceptional strength and durability. These chains are specifically designed to handle heavy loads and are well-suited for various rigging tasks, including hoisting, pulling, and securing heavy objects.

The key features that make heavy-duty chains suitable for such applications include:

  • High Load Capacity: Heavy-duty chains are engineered to withstand extremely high loads, making them ideal for lifting and rigging heavy machinery, equipment, and materials.
  • Robust Construction: These chains are made from high-quality materials and undergo heat treatment processes to enhance their strength and toughness, ensuring they can withstand the stresses of heavy lifting operations.
  • Versatility: Heavy-duty chains come in various configurations, such as single, double, or triple strand designs, to accommodate different load requirements and rigging setups.
  • Safety Considerations: When using heavy-duty chains for lifting and rigging, it is essential to follow industry safety standards and guidelines to ensure the safety of personnel and equipment.

Heavy-duty chains find applications in industries such as construction, manufacturing, mining, and offshore operations. They are commonly used in cranes, winches, hoists, and other lifting devices to move and position heavy objects safely and efficiently.

When selecting heavy-duty chains for lifting and rigging applications, it is crucial to consider factors such as the working load limit (WLL), chain size, and compatibility with the lifting equipment. Regular inspection and maintenance are also essential to ensure the chains remain in good working condition and can perform reliably in heavy-duty lifting and rigging operations.

heavy duty chain

Can heavy-duty chains be used in outdoor or harsh environments?

Yes, heavy-duty chains are specifically designed to excel in outdoor or harsh environments. Their robust construction and choice of high-strength materials make them well-suited for demanding applications where exposure to extreme weather, moisture, and other challenging conditions is common. Some of the environments where heavy-duty chains are commonly used include:

  • Construction Sites: Heavy-duty chains are extensively used in construction equipment like excavators, bulldozers, and cranes, where they must withstand the rigors of construction sites.
  • Mining Operations: In mining equipment such as loaders, haul trucks, and crushers, heavy-duty chains play a critical role in handling heavy loads and operating in harsh conditions.
  • Marine Environments: Stainless steel and galvanized heavy-duty chains are utilized in marine equipment due to their corrosion resistance, making them ideal for ship mooring, lifting, and anchoring.
  • Agricultural Settings: Heavy-duty chains are commonly employed in agricultural machinery for various tasks like tilling, harvesting, and irrigation.
  • Forestry Applications: In forestry equipment, such as logging machinery and sawmills, heavy-duty chains are essential to handle the demanding conditions of wood processing.
  • Outdoor Power Equipment: Chainsaws and other outdoor power tools often use heavy-duty chains to endure the stresses of cutting through tough materials.

These chains are designed to resist corrosion, abrasion, and fatigue, ensuring their reliable performance in challenging outdoor environments. Regular maintenance and proper lubrication are still necessary to prolong the lifespan and efficiency of heavy-duty chains when used in such conditions.

China manufacturer Heavy Duty Link Chain 6mm 8mm 10mm Black Lifting Chain  China manufacturer Heavy Duty Link Chain 6mm 8mm 10mm Black Lifting Chain
editor by CX 2024-05-02

China Good quality OEM Agricultural Machinery Parts Ca Type Heavy Duty Agricultural Roller Chain

Product Description

Harvester Chains of Carton Steel (415S)

PRODUCT SHOW

PRODUCT DETAILS

Product Parameters

Product Name Agricultural Machinery Roller Chain
Standard GB, ISO, ANSI, DIN
Material Carbon steel, Alloy, Stainless Steel
Surface Treatment Heat treatment, Sand-blasted, Shot-peening
Certifications ISO9001:2015, GB/T19001-2016, ISO1400:2015
Tensile Strength High strength
Packaging Plastic Bag+ Carton+Wooden Case
Application Agricultural Machinery

More Products

Advantage

Certifications

DETAILS ABOUT CHINAMFG CHAIN

Exhibition

Workshop

Application

Packaging Details

Shipping

FAQ

1. Are you a manufacturer or trade Company?
We are a factory founded in 1997 with a trade team for international service.

2. What terms of payment do you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight

3. What is your lead time for your goods?
Normally 35 days after confirmed order. 30 days could be available in the low season for some items (during May to July), and 45 days during the new year and hot season ( Jan to March).

4. Samples
For customers who need sample confirmation before ordering, please bear in mind that the following policy will be adopted:
1) All samples are free of charge with a maximum value not exceeding USD 100.
2) The courier cost for the first-time sample sending will be charged by the consignee. We will send the samples with freight to be collected. So please inform your account with FedEx, UPS, DHL, or TNT so that we can proceed promptly.
3) The first-time courier cost will be totally deducted from the contract value of the trial cooperation.

/* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Standard or Nonstandard: Nonstandard
Application: Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
Surface Treatment: Polishing
Structure: Roller Chain
Material: Stainless Steel
Type: Agricultural Chain
Samples:
US$ 0/Piece
1 Piece(Min.Order)

|
Request Sample

Customization:
Available

|

Customized Request

heavy duty chain

What are the benefits of using a heavy-duty chain over other chain types?

Heavy-duty chains offer several advantages over other chain types, making them a preferred choice in various industrial applications:

  • High Strength: Heavy-duty chains are specifically designed to handle heavy loads and high forces, making them ideal for applications that require superior strength and durability.
  • Robustness: These chains are constructed from tough materials and undergo rigorous manufacturing processes, ensuring they can withstand harsh operating conditions and resist wear and tear over extended periods.
  • Reliability: The robust design and high-quality materials used in heavy-duty chains result in reliable performance, reducing the risk of chain failure and equipment downtime.
  • Wide Range of Sizes: Heavy-duty chains are available in various sizes and configurations to accommodate different applications and equipment requirements, offering versatility in their usage.
  • Compatibility: They can be used with a wide range of sprockets or pulleys, providing flexibility in designing mechanical systems and power transmission setups.
  • Reduced Stretch: Heavy-duty chains exhibit minimal elongation or stretch during operation, maintaining consistent power transmission and precise positioning in machinery.
  • Resistance to Corrosion: Some heavy-duty chains are made from corrosion-resistant materials, making them suitable for use in challenging environments such as marine, outdoor, or high-moisture settings.
  • Long Service Life: Due to their strength and durability, heavy-duty chains generally have a longer service life compared to standard chains, leading to cost savings over time.

Overall, heavy-duty chains are an excellent choice in demanding industrial applications where reliable performance, strength, and longevity are crucial factors. Their ability to handle heavy loads, resist wear and corrosion, and maintain precision makes them indispensable in various industries, including construction, mining, agriculture, marine, and material handling.

heavy duty chain

Can heavy-duty chains be used in power transmission for renewable energy applications?

Yes, heavy-duty chains can be used in power transmission for renewable energy applications. Renewable energy sources such as wind and solar power often require large and robust mechanical systems to convert the energy generated into usable electricity.

Heavy-duty chains play a vital role in these power transmission systems, especially in wind turbines and solar tracking systems. Here’s how heavy-duty chains are utilized in these renewable energy applications:

  • Wind Turbines: Heavy-duty chains are commonly used in the pitch control mechanism of wind turbines. The pitch control system adjusts the angle of the turbine blades to optimize their aerodynamic performance. The chains in this system must be able to withstand high loads and cyclic stresses as they operate under varying wind conditions. Additionally, chains are used in the yaw drive system, enabling the turbine to turn and face the wind.
  • Solar Tracking Systems: Solar panels in solar farms are often mounted on tracking systems that follow the sun’s path to maximize energy capture. Heavy-duty chains are employed in these tracking systems to ensure precise and reliable movement of the solar panels throughout the day. The chains must be durable and resistant to environmental factors to endure long-term outdoor use.
  • Hydropower: In hydropower plants, heavy-duty chains are used in various applications, including opening and closing dam gates, controlling water flow, and operating large water turbine systems. These chains must be capable of withstanding the high forces generated by the water flow.

Heavy-duty chains are preferred in these renewable energy applications due to their strength, reliability, and ability to handle heavy loads and high-stress conditions. Regular maintenance is essential to ensure the chains’ optimal performance and to avoid downtime in power generation operations.

In summary, heavy-duty chains are integral components in power transmission systems for renewable energy applications, contributing to the efficient and sustainable generation of clean energy.

heavy duty chain

What materials are heavy-duty chains typically made of to withstand heavy usage?

Heavy-duty chains are made of high-strength materials that can withstand the demanding conditions of heavy usage. The most common materials used in manufacturing heavy-duty chains include:

  • Alloy Steel: Alloy steel is a popular choice for heavy-duty chains due to its excellent strength, toughness, and wear resistance. It is well-suited for applications in industries such as construction, mining, and forestry.
  • Stainless Steel: Stainless steel heavy-duty chains offer superior corrosion resistance, making them ideal for applications in marine environments, food processing, and other industries where exposure to moisture and chemicals is a concern.
  • Carbon Steel: Carbon steel chains are more affordable than alloy steel or stainless steel, making them a practical choice for heavy-duty applications that don’t require high levels of corrosion resistance.
  • Chromium-Molybdenum Steel: This type of steel provides a balance between strength and toughness, making it suitable for heavy-duty chains used in agricultural equipment and manufacturing machinery.
  • Nickel-Plated Steel: Nickel-plated chains offer additional protection against corrosion, making them suitable for applications where exposure to harsh environments is expected.
  • Galvanized Steel: Galvanized chains are coated with a layer of zinc, which provides corrosion resistance and is commonly used in outdoor applications and marine environments.

The choice of material depends on the specific requirements of the application and the operating environment. Heavy-duty chains made from these materials can endure the stresses of heavy usage and maintain their strength and integrity over prolonged periods, ensuring the reliable performance of various industrial machinery and equipment.

China Good quality OEM Agricultural Machinery Parts Ca Type Heavy Duty Agricultural Roller Chain  China Good quality OEM Agricultural Machinery Parts Ca Type Heavy Duty Agricultural Roller Chain
editor by CX 2024-04-30

China supplier Industrial Drive Roller Conveyor Leaf Chain Hoisting Hollow Pin Heavy Duty Stainless Steel Short Double Pitch (AL BL LL)

Product Description

Product Description

Industrial Drive Roller Conveyor Leaf Chain

HangZhou Vision Chain Transmission Co., Ltd. offers a wide range of leaf chains that meet ISO, BS, JS, and other industry standards. Our leaf chains are made of high-quality materials and undergo advanced heat treatment technology, ensuring durability and reliability.

Our leaf chain series include BL, AL, LL, and FL, which are designed for various applications. Whether you need a leaf chain for forklift trucks, textile machinery, drilling rigs, or any other equipment requiring vertical lifting or horizontal traction, we have the right solution for you.

At HangZhou Vision Chain Transmission Co., Ltd., we understand that every customer has unique requirements. That’s why we offer customized leaf chain services to meet your specific needs. Just let us know your requirements, and our team will provide you with a tailored solution.

Key Features:

  • High-quality materials and heat treatment technology
  • Meets ISO, BS, JS, and other industry standards
  • Available in BL, AL, LL, and FL series
  • Customized leaf chain service
  • Wide range of applications

Choose HangZhou Vision Chain Transmission Co., Ltd. for reliable and efficient leaf chains that deliver exceptional performance. Contact us today to discuss your leaf chain requirements.

Product Attribute

Usage

Leaf Chain ,Flyer chain


Material

Alloy/Carbon Steel


Application industry Metallurgy, coal, electricity, food, chemical industry, tobacco, beverage, etc


Surface Treatment

Self-color Sand-blasted Shot-peening

Product Series



AL,BL ,LL,FL,LH

Port

Any sea port or airport in China


Brand TV OEM
Payment

L/C, T/T, D/P, Western Union


Package

Chain, Plastic Bag, Color Box, Wooden Case. or OEM


AL Series

AL322,AL344,AL422,AL444,AL466,AL522,AL534,AL544,AL566,AL622,AL644,AL666,AL688

AL822,AL844,AL866,AL888,AL1571,AL1044,AL1066,AL1088,AL1222,AL1244,AL1266,AL1288

AL1444,AL1466,AL1644,AL1666,AL1688


BL Series BL422,BL423,BL434,BL444,BL446,BL488,BL522,BL523,BL534,BL544,BL546,BL566,BL588

BL622,BL623,BL634,BL644,BL646,BL688,BL822,BL823,BL834,BL844,BL846,BL866,BL888

BL1571,BL1571,BL1034,BL1044,BL1046,BL1088,BL1222,BL1223,BL1234,BL1244,BL1246

BL1266,BL1288,BL1422,BL1423,BL1434,BL1444,BL1446,BL1488,BL1622,BL1623,BL1634

BL1644,BL1646,BL1666,BL1888,BL2571,BL2571,BL2034,BL2044,BL2046,BL2088


LL Series LL0622,LL0644,LL0666,LL0822,LL0844,LL0866,LL 0571 ,LL1571,LL1044,LL1066,LL1088,LL1222

LL1244,LL1266,LL1288,LL1622,LL1644,LL1666,LL1688,LL2571,LL2044,LL2066,LL2088,LL2422

LL2444,LL2466,LL2488,LL2822,LL2844,LL2866,LL2888,LL3222,LL3244,LL3266,LL3288,LL4571

LL4044,LL4066,LL4088,LL4822,LL4844,LL4866,LL4888


LH Series LH0822,LH0823,LH571,LH0844,LH0846,LH0866,LH 0571 ,LH1571,LH1571,LH1034,LH1044

LH1046,LH1066,LH1088,LH1222,LH1223,LH1234,LH1244,LH1246,LH1266,LH1288,LH1622

LH1623,LH1634,LH1644,LH1646,LH1666,LH1688,LH2571,LH2571,LH2034,LH2044,LH2046

LH2066,LH2088,LH2422,LH2423,LH2434,LH2444,LH2446,LH2466,LH2488,LH2822,LH2823

LH2834,LH2844,LH2846,LH2866,LH2888,LH3222,LH3223,LH3234,LH3244,LH3246,LH3266

LH3288,LH4571,LH4571,LH4034,LH4044,LH4046,LH4066,LH4088


FL Series FL644,FL666,FL688,FL523,FL844,FL922,FL944,FL945,FL956,FL966,FL988

We also carry out OEM according to your requirements


Detailed Photos

Product Parameters





Our Advantages

Company Advantages:
– Own Import & Export License
– TV trademark registered successfully in multiple countries
– Sales network covering China and exporting to 65 countries CHINAMFG

Membership:
– Member of China General Machine Components Industry Association
– Member of China Chain Transmission Association
– Member of China Chain Standardization Association
– Member of China Agricultural Association Machinery Manufacturers

With our highly trained staff and workers, advanced and efficient equipment, extensive sales network, and strict quality assurance systems, you can be confident that our premium qualified chain meets the highest standards and specifications.

Contact us now for more information on how TransVision products can fulfill your industry’s demands at competitive prices.

Quality First, Clients Uppermost.

Product Description:
HangZhou Vision Chain Transmission Co., Ltd. presents the Industrial Drive Roller Conveyor Leaf Chain Hoisting Hollow Pin Heavy Duty Stainless Steel Short Double Pitch (AL BL LL). This transmission chain is designed for various applications and is made of high-quality materials. With its durable construction and excellent performance, it ensures reliable and efficient operation.

Key Features:
– Suitable for transmission chain applications
– Made of high-quality materials
– Surface treatment: Other

Don’t miss out on the opportunity to enhance your operations with our top-notch chain. Contact us now for more information and take advantage of our competitive pricing.





HangZhou Vision Chain Transmission Co., Ltd. offers a range of industrial drive roller conveyor leaf chains. These chains are heavy-duty, stainless steel, and designed for hoisting and transmission purposes. Choose from various types, including AL, BL, and LL chains. Perfect for conveyor systems and other applications.





















































WHY CHOOSE US

Product Description

Introducing our comprehensive product portfolio from HangZhou Vision Chain Transmission Co., Ltd. We are proud to offer a wide range of power transmission products to meet all your needs. Our product lineup includes drive chains, conveyor chains, agricultural chains, sprockets, and couplings. With our one-stop shopping experience, you can easily find what you’re looking for with just 1 click, saving you time and effort.

Our products are the perfect combination of quality and affordability. We understand the importance of staying within your budget, and that’s why we offer value choice products that deliver exceptional performance without breaking the bank.

When you choose us, you’ll have the support of our seasoned sales associates and engineers. Our team consists of 15 experienced sales associates and 5 knowledgeable engineers who are always ready to lend a helping hand. With their industry know-how, they can provide you with expert advice and assistance. You can count on them to respond to your requests within 24 hours.

Our commitment to customer satisfaction is evident in our 100% customer retention rate. Our regular customers from overseas keep coming back not only for our premium quality products but also for the superior services we’ve provided over the years.

Experience the difference with HangZhou Vision Chain Transmission Co., Ltd. Choose us for all your power transmission needs and enjoy the convenience, quality, and excellent service we offer. Shop now and discover why we are the preferred choice for customers worldwide.

FAQ
Q1: What’s your average lead time?
A: It varies. Our regular end-to-end lead time is 1-2 months.. We also provide express shipments for rush orders. For details,please consult our sales associate.

Q2: Is your price better than your competitors given the same quality?
A: Definitely YES. We provide the most competitive price in the power transmission industry. If price disparity exists, we’ll be more than happy to do a price match.
Q3: Can you make chains according to my CAD drawings?
A: Yes. Besides the regular standard chains, we produce non-standard and custom-design products to meet the specific technical requirements. In reality, a sizable portion of our production capacity is assigned to make non-standard products.

Q4: Can we inspect the goods before shipment?
A: Yes. You or your representative or any third-party inspection party assigned is allowed access to our facility and do the inspection.

Q5: What kind of payment method is acceptable for your mill?
A: We’re flexible. We take T/T, L/C, or any other online payment methods so long as it’s applicable for you.

Q6: What if I have any other questions?
A: Whenever in doubt, you’re always encouraged to consult our sales associate any time – They will help you to your satisfaction.








/* January 22, 2571 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

Usage: Transmission Chain
Material: Alloy/Carbon Steel
Surface Treatment: Natural
Customization:
Available

|

Customized Request

.shipping-cost-tm .tm-status-off{background: none;padding:0;color: #1470cc}

Shipping Cost:

Estimated freight per unit.







about shipping cost and estimated delivery time.
Payment Method:









Initial Payment



Full Payment
Currency: US$
Return&refunds: You can apply for a refund up to 30 days after receipt of the products.

heavy duty chain

Can heavy-duty chains be used in automotive and transportation equipment?

Yes, heavy-duty chains can be used in various automotive and transportation equipment applications. These chains are designed to handle heavy loads and provide reliable power transmission in demanding conditions, making them suitable for a wide range of automotive and transportation-related tasks.

In automotive applications, heavy-duty chains can be found in timing systems, where they ensure precise synchronization between the engine’s camshaft and crankshaft. They are also used in transfer cases, differentials, and other drivetrain components that require robust and dependable power transmission.

Transportation equipment, such as trucks, buses, and industrial vehicles, often rely on heavy-duty chains for various functions, including suspension systems, lifting mechanisms, and steering systems. In these applications, the chains must withstand continuous use and exposure to environmental factors.

Heavy-duty chains are engineered to offer exceptional durability, high tensile strength, and resistance to wear, making them a reliable choice for automotive and transportation equipment that operates under heavy loads and challenging conditions.

heavy duty chain

Can heavy-duty chains be used in material handling equipment for warehouses?

Yes, heavy-duty chains are commonly used in material handling equipment for warehouses and distribution centers. Material handling equipment such as overhead cranes, hoists, trolleys, and conveyors often rely on heavy-duty chains to lift, move, and position heavy loads with precision and efficiency.

Heavy-duty chains are designed to withstand high loads, dynamic forces, and challenging operating conditions, making them well-suited for the demanding requirements of warehouse material handling.

Some specific applications of heavy-duty chains in material handling equipment include:

  • Overhead Cranes: Heavy-duty chains are used in overhead crane systems to lift and move heavy objects, containers, or pallets within the warehouse. These chains provide reliable and safe lifting capabilities for various material handling tasks.
  • Hoists and Trolleys: Heavy-duty chains are often used in electric or manual hoists and trolleys to lift and lower loads vertically. The chains’ strength and durability allow for smooth and controlled movement of goods.
  • Conveyors: In warehouse conveyor systems, heavy-duty chains are employed to power and drive the conveyor belts, facilitating the movement of goods along the production or distribution lines.
  • Stackers and Reclaimers: These machines are used to stack and reclaim bulk materials in warehouses and storage yards. Heavy-duty chains play a vital role in the stacking and reclaiming process, enabling efficient material handling and storage.

By utilizing heavy-duty chains in material handling equipment, warehouses can achieve increased productivity, faster throughput, and improved safety during the handling and movement of goods. It is essential to choose the right type and size of heavy-duty chain based on the specific application requirements and load capacities to ensure optimal performance and safety.

heavy duty chain

What are the maintenance requirements for heavy-duty chains?

Maintaining heavy-duty chains is crucial to ensure their longevity and reliable performance in various industrial applications. Here are some essential maintenance requirements:

  • Regular Inspection: Implement a regular inspection schedule to visually examine the chain for signs of wear, corrosion, or damage. Inspect the chain’s pins, rollers, and links for any abnormalities.
  • Lubrication: Proper lubrication is essential to reduce friction and wear between chain components. Use the appropriate lubricant recommended by the chain manufacturer for the specific application and operating conditions.
  • Tension Adjustment: Maintain the correct tension in the chain to prevent excessive slack or tension, which can lead to premature wear or chain failure.
  • Cleaning: Regularly clean the chain to remove dirt, debris, and contaminants that can contribute to wear and corrosion. Use appropriate cleaning agents that won’t damage the chain’s surface or coating.
  • Replacement of Worn Components: If any part of the chain, such as pins, rollers, or links, shows significant wear or damage, replace those components promptly to avoid further damage to the chain and other equipment.
  • Environmental Considerations: Consider the environment in which the chain operates. In harsh conditions, such as dusty or corrosive environments, more frequent maintenance may be necessary.
  • Training and Handling: Ensure that personnel responsible for chain maintenance are properly trained in safe handling and maintenance procedures. Mishandling the chain during maintenance can lead to accidents and injuries.
  • Record-Keeping: Maintain a record of the chain’s maintenance history, including inspection dates, lubrication schedules, and any replacements or repairs performed.

Following a comprehensive maintenance program will help detect any issues early on, prevent chain failures, and extend the chain’s service life. Regular maintenance also contributes to the overall safety and reliability of the equipment in which the heavy-duty chain is used.

China supplier Industrial Drive Roller Conveyor Leaf Chain Hoisting Hollow Pin Heavy Duty Stainless Steel Short Double Pitch (AL BL LL)  China supplier Industrial Drive Roller Conveyor Leaf Chain Hoisting Hollow Pin Heavy Duty Stainless Steel Short Double Pitch (AL BL LL)
editor by CX 2024-04-29
